Product Center Power Tools

Home > Products > Power Tools

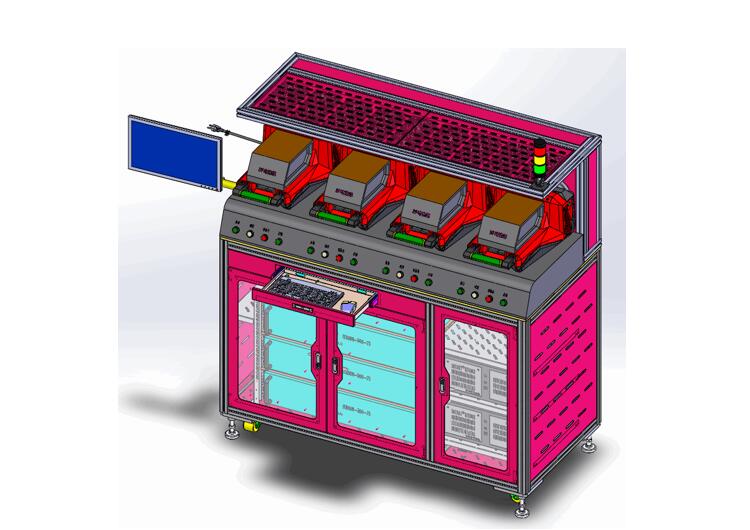

Battery Pack Charge And Discharge Tester

Module

KC3120

Introduction

Equipment introduction1. Charging time and current cut-off, the time can be set by yourself according to the password, the maximum charging current is 12A.2. Charging can use voltage as anti-fool cut-...


Power Tool Charging Station Power Test


Equipment introduction

1. Charging time and current cut-off, the time can be set by yourself according to the password, the maximum charging current is 12A.

2. Charging can use voltage as anti-fool cut-off, the voltage can be set by yourself according to the password.

3. The charging voltage is collected using the NI acquisition card, the charging voltage curve needs to be monitored, 10 data are collected per second, and the curve can be stored.

4. Discharging is controlled by time cut-off, the time can be set by yourself according to the password.

5. Discharging can use voltage as anti-fool cut-off, the voltage can be set by yourself according to the password.

6. Discharging uses programmable load to collect current, the discharge voltage curve needs to be monitored, 10 data are collected per second, and the curve can be stored.

7. Discharging current can be set by yourself according to the password, the maximum discharge current is 60A.

8. Voltage acquisition accuracy: 0.01V Current acquisition accuracy 0.01A.



—————————————————————————————————————————————————————————

Hello! The above product information only lists some of the main test functions. All items supported by the equipment are not listed in detail here.

If you need to obtain customized solutions or company introduction materials, please contact mobile phone & WeChat: +86 18033069200

Click the picture below to view more customer cases


BMS Testing System
