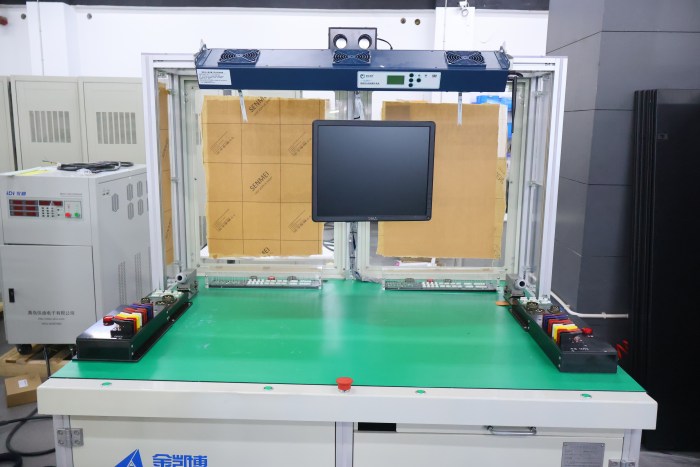

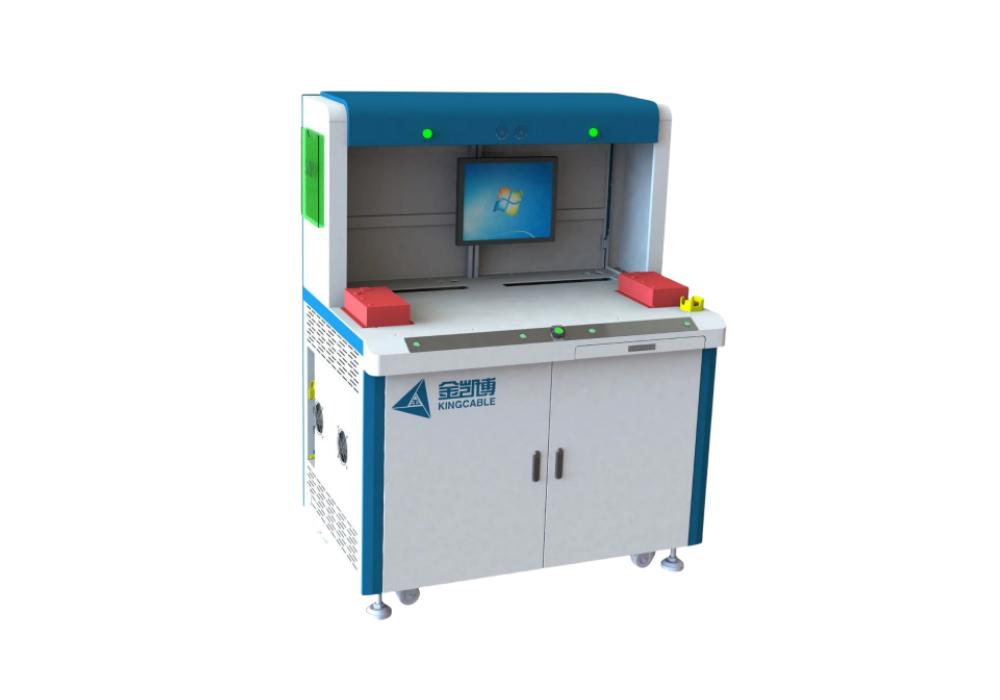

Equipment Introduction
Specially customized for functional testing of smart home appliance control assemblies, it adopts industry-leading testing technology, internationally renowned brand equipment components, and a unique single-machine dual-tool design, which realizes the functions and uses of traditional two systems in one system.
Equipment Features
1. The test standard is manually input or directly imported, and the test data results can be automatically compared with the manually input test standard, showing the test results OK/NG, and can be automatically saved and queried according to the test items;
2. After the test, the system automatically counts the total number of tests and the number of test failures, and stores them in the computer in a database;
3. The graphical report produced on the day is displayed in real time on the main interface of the test station. Including defective rate, qualified rate, and output information;
4. Each test station can view and export the test information of this test station, and can query the detailed records of the test by scanning the barcode, entering the barcode code, entering the date, special number, station, tester and other conditions.
5. Real-time display of the test status of the equipment, such as standby, testing, qualified test, and test failure alarm;
6. The cumulative number of tests, test time, and test failure rate of each device can be queried in the background through time periods;
7. Real-time display of the test status, test value, test result, and test time of each function in the order of test steps;
8. After the test is completed, OK is displayed prominently for qualified and NG is displayed prominently for unqualified, and a pleasant voice prompt is issued. The voice prompt function can be selected to be blocked in the background;
9. After the test is completed, the data is automatically saved.
Application Industry
Applicable to functional testing of control panel assemblies of refrigerators, air conditioners, washing machines, and other smart home appliances.

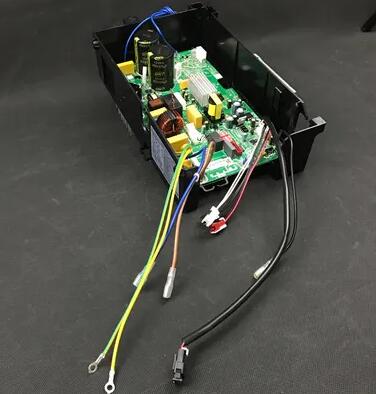

Air conditioner main control board automatic FCT test
Voltage and current measurement (AC current optional)
Buzzer automatic detection
Indicator lighting automatic detection button automatic detection
Motor frequency amplitude automatic detection
Digital tube, display panel light automatic detection (optional)
Communication interface automatic detection (optional)
Power automatic detection (optional) Compressor three-phase current test (optional)
Washing machine main control board automatic FCT test
Mainboard voltage and current detection ((AC current optional)
Indicator lighting automatic detection
Controlled silicon, relay and other load output automatic detection
Water level, temperature and other sensors automatic detection
Motor frequency amplitude automatic detection
Buzzer detection
Key detection
Digital tube, display panel light detection (optional)
Refrigerator main control board automatic FCT test
Voltage, current measurement (AC Current optional)
LED lighting detection
Key detection
Communication interface automatic detection (optional) Power automatic detection (optional)
Digital tube, display panel automatic detection (optional)
Induction cooker main control board automatic FCT test
Key point voltage and current detection (AC current optional)
Buzzer detection
Key detection LED lighting detection
Digital tube, display panel detection (optional) Power detection (optional)
Microwave oven main control board automatic FCT test
Voltage, current measurement (AC current optional)
Key detection
LED lighting detection
Relay and output load detection Buzzer detection
Digital tube, LCD detection (optional)
Water heater main control board automatic FCT test
Barcode scanning function, online programming (optional)
Voltage, current measurement (AC current optional)
Secondary pressure adjustment, set Vmax. Vmin
Proportional valve voltage detection, system water pressure detection, heating sensor detection
Wind pressure detection, accidental flameout detection, overheat protection detection
Sanitary water temperature sensor detection, antifreeze function detection
Sanitary water priority function detection, heating function detection
Power detection (optional)
Digital tube, display panel detection (optional)
—————————————————————————————————————————————————————————
Hello! The above product information only lists some of the main test functions. All items supported by the equipment are not listed in detail here.
If you need to obtain customized solutions or company introduction materials, please contact mobile phone & WeChat: +86 18033069200

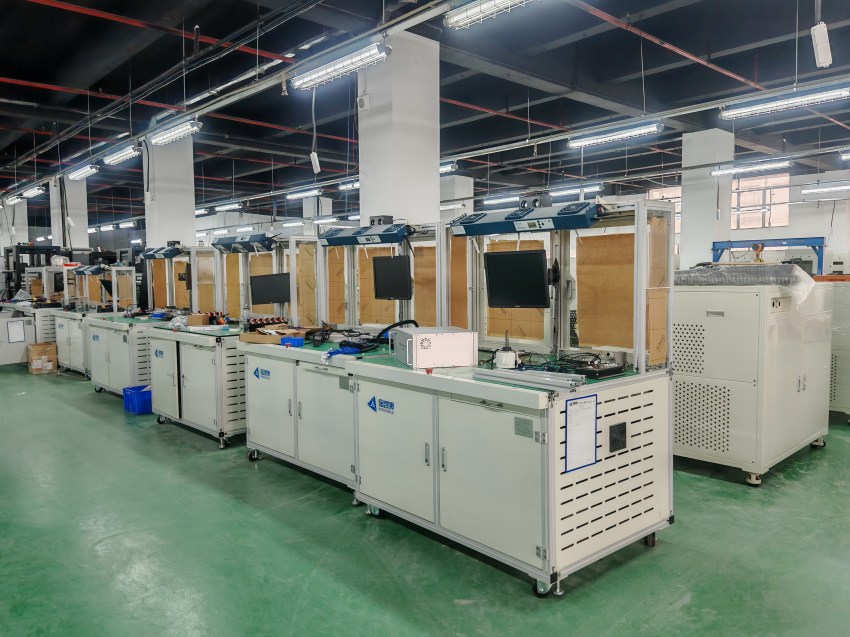

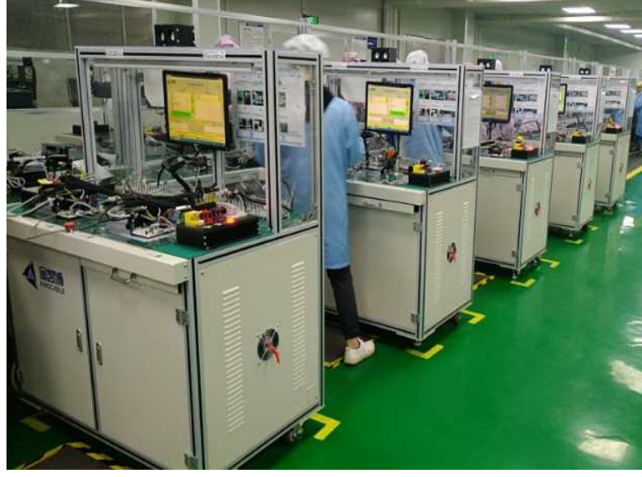

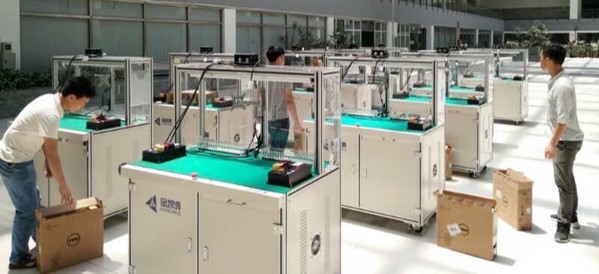

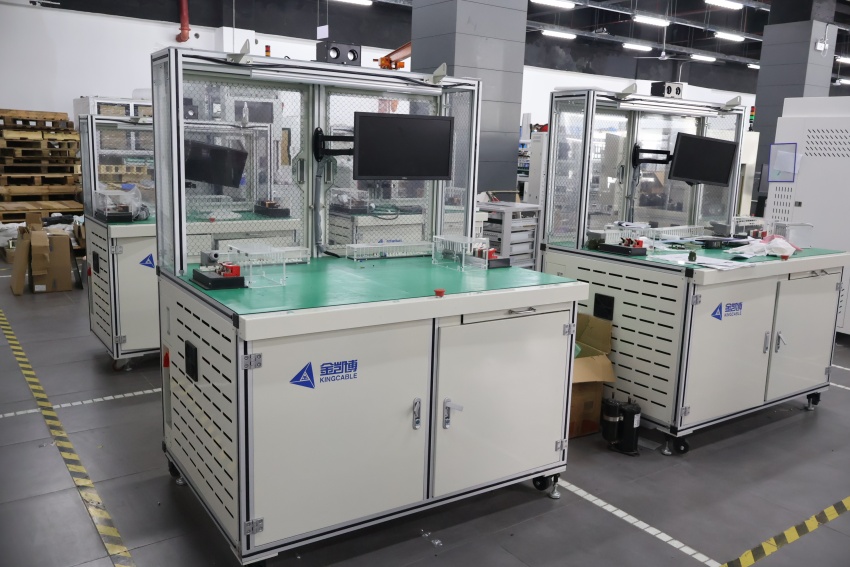

Click the picture below to view more customer cases
